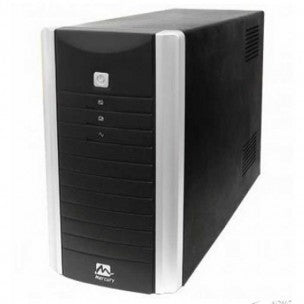

Mercury Elite 2000U Pro UPS UK Plug 2000VA/1200W Offline USB, 4 X Universal Socket 2 X 9AH Battery
Mercury Elite 2000U Pro UPS UK Plug 2000VA/1200W Offline USB, 4 X Universal Socket 2 X 9AH Battery
Product Highlights
- Automatic restart of loads after UPS shutdown – Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test – Periodic battery self-test ensures early detection of a battery that needs to be replaced. Automatic Voltage Regulation (AVR) – Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Resettable circuit breaker – Easy recovery from overloads; no need to replace a fuse.
Specifications
Rating input voltage 2000 VA / 1200 W
Rating input frequency 60/50Hz (auto sensing)
Input phase Single-phase
Input socket With Fuse
Cold Start (0 to 100% load) Press the ON/OFF Switch
Input Range (220V) 140-300
Rating output(VA) 2000
Rating output (W) 1200
Power factor 0.6
Rating output voltage (V) 220
Waveform Battery mode (simulated sine wave),
AC mode(sine wave)
AC Voltage Regulation ±10% (Battery mode)
Rear output socket 4 x Universal – Battery backup
Waveform Simulated Sine Wave (Battery mode)
Line Mode Synchronize with the utility
Rating frequency 60Hz or 50 Hz ± 1 Hz
Battery Mode Yellow flashing
Short circuit protection Line Mode Fuse & Firmware protection
Short circuit protection Battery Mode Firmware Protection
Overload protection Line Mode 110%±5%; Go to fault mode Line Mode after 5 minutes, 120%±5%; Go to fault mode immediately.
Overload protection Battery Mode 110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediately
Indicators AC mode Green Lighting, Battery Mode Yellow Flashing, Fault Red Lighting
