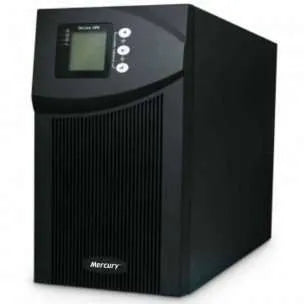

Mercury HP930C-S 0.8PF 3KVA/2.4KW Online UPS
Mercury HP930C-S 0.8PF 3KVA/2.4KW Online UPS
Product Highlights
- Capacity: 3KVA / 2400W
- Phase: Single Phase
- Technology: High frequency and double conversion online technology
- Fully digitized microprocessor control
- Wide input voltage range: 115VAC(±5) ~ 295VAC(±5) if load ≤ 70%
- LCD display
- UPS startup without battery
- Cold start
- Advanced battery management
- Automatic battery charge in UPS off mode
- Lightning and surge protection
- Short circuit and overload protection
- Fan speed auto control when loads varies
- Network/Fax/Modem surge protection
- Optional extension battery pack
- Battery voltage display
- Load capacity display
- EMI/RFI noise filter
- Smart RS232 communication with monitoring software
- Optional SNMP Card slot
- EPO function(optional)
- Input L and N reversed alaram function
- Battery: 8x 12V / 7AH
- Ideal applications: Small network, servers and other IT equipment
Specifications
Capacity 3KVA / 2400W
Phase Single Phase
Input voltage 115VAC(±5) ~ 295VAC(±5) if load ≤ 70%; 160VAC(±5) ~ 295VAC(±5) if load ≥ 70%
Frequency 46 ~ 54(50Hz)±0.5Hz; 56 ~ 64(60Hz)±0.5Hz auto sensing
Input power factor ≥ 0.97
Output voltage 220/230VAC ± 2%
Frequency 50Hz / 60Hz ± 0.2%
THD < 3% (linear load); < 6% (non linear load)
Overload capability > 110%, 30s turn to bypass mode; > 150%, 300ms turn to bypass mode
Crest factor 3:1 (max)
Short circuit protection
• 5 cycles turn off inverter, no transfer tp bypass, provide alarm (AC mode);
• 5 cycles turn off inverter, provide alarm (AC mode);
• Unput fuse blown or breaker action (bypass mode)
Waveform Pure sine wave
Transfer time
• 0ms between AC mode & Bypass mode
• 4ms (typical 2.5ms) between Inverter mode & Bypass mode
Efficiency ≥ 85%
Model 12V sealed lead acid maintenance free
Battery 8x 12V / 7AH
DC voltage 96VDC
Back-up 16min (half load); 5min (full load)
Recharge time 8hours ~ 90% capacity
Charge current 1A(standard unit);6A(long time unit)
Communication interface RS232 ; SNMP (optional)
LED indication Load or battery capacity
