D-Link 5 Port 10/100/1000Base-T PoE Switch, Ethernet Gigabit Unmanaged Desktop Switch with 4 PoE Ports 60W Power Budget - DGS-1005P
D-Link 5 Port 10/100/1000Base-T PoE Switch, Ethernet Gigabit Unmanaged Desktop Switch with 4 PoE Ports 60W Power Budget - DGS-1005P
Product Highlights
- Five 10/100/1000 Gigabit Ethernet ports (4 ports supporting PoE)
- IEEE 802.3at compliant - up to 30W per port
- Total PoE budget 60W

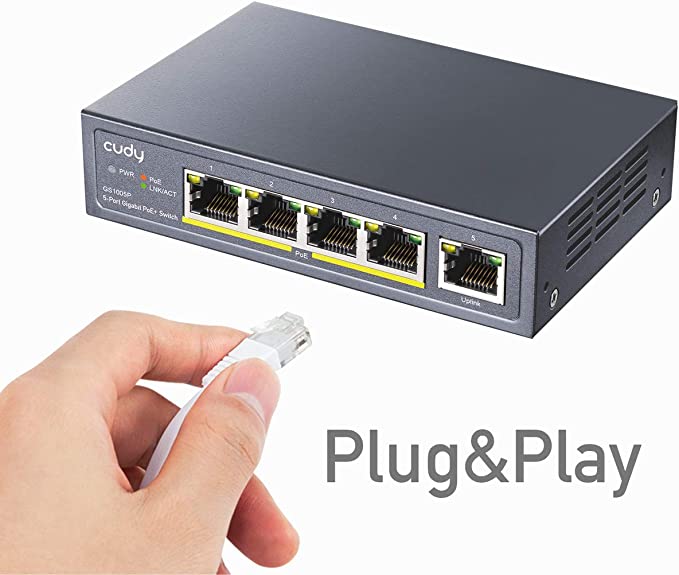

- Plug & Play simplicity for easy installation
- Solid metal housing - built to last
- Limited Lifetime Warranty
Specifications
Item Description
Power Power supply External Power Adaptor
Voltage Range DC48~57V
Switch Consumption <5W
Ethernet Speed 1~5 Port : 10/100/1000Mbps
Uplink: 10/100/1000Mbps
Transmission Distanc 100Meter (328ft)
Network Switch Ethernet Standard IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching capacity 10G
Transfer Rate 14,880pps for 10Mbps
148,800pps for 100Mbps
1,488,000pps for 1000Mbps
MAC Address 2K MAC address table
LINK/ACT On Green The port is connecting
Blinks - The port is receiving or transmitting data
Off - The port is not linked successfully with the device
POE On Orange PD is connected
OFF - No PD is connected or power forwarding fails
Capacity 60W
PoE pin assignmnet V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
