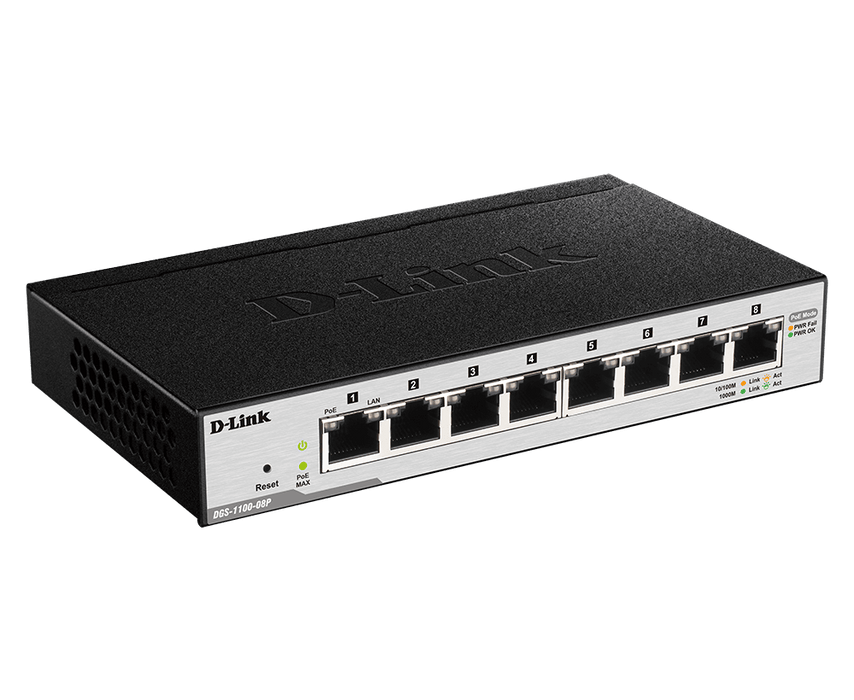

D-Link 8 port 10/100/1000Mbps PoE Easy Smart green switch, 64W power budget (UK power plug) - DGS-1100-08P

D-Link 8 port 10/100/1000Mbps PoE Easy Smart green switch, 64W power budget (UK power plug) - DGS-1100-08P"

by D-Link
Save 4% Save 4%
KSh12,500.00
KSh12,500.00 - KSh12,500.00
KSh12,500.00
KSh11,999.00
KSh11,999.00 - KSh11,999.00
KSh11,999.00

D-Link 8 port 10/100/1000Mbps PoE Easy Smart green switch, 64W power budget (UK power plug) - DGS-1100-08P

Product Highlights

  • 8 x 10/100/1000BASE-T PoE ports
  • Supports IEEE 802.3at PoE
  • Compact design for convenient placement
  • Fanless design for silent operation
  • Innovative D-Link Green energy saving features
  • Complete web interface for comprehensive switch management

Specifications

Size
Desktop
Number of Ports
8 10/100/1000 PoE Gigabit ports
Port Functions
IEEE 802.3 compliant
IEEE 802.3u compliant
Supports half/full-duplex operation (half at 10/100Mbps, full at 1000Mbps)
Auto-negotiation
Auto MDI/MDIX
 IEEE 802.3x Flow Control supports Full-Duplex mode
IEEE 802.3az compliant
Performance
Switching Capacity
16Gbps
Maximum Forwarding Rate
11.9Mpps
MAC Address Table Size
8K Entries
Packet Buffer
• 2Mbits
Flash Memory
• 2MB
PoE
PoE Standard
• 802.3af
PoE Capable Ports
• Port 1 to 8: 15.4W
• Max. 15.4 W on 4 10/100/1000Mbps ports
• Max. 8W on 8 10/100/1000Mbps ports
PoE Power Budget
64W
LEDs
• Power (per device)
• PoE Max.
• Link/Activity/Speed (per port)
Power Consumption
Standby Mode
• 2.0 watts
Maximum
• 78.8 watts
Software Features
VLAN
• Port-based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• VLAN Group
  – Supports 32 static VLAN groups
  – Max. 4094 VIDs
L2 Features
• MAC Address Table: 8K
• Flow Control
  – 802.3x Flow Control
  – HOL Blocking Prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
  – IGMP v1/v2 Snooping
  – Supports 32 Groups
• Link Aggregation
  – 2 groups, 2-4 ports per group
• Loopback Detection
• Cable Diagnostics
• Port Mirroring
  – One-to-One
• Statistics
  – Tx Ok
  – Tx Error
  – Rx Ok
  – Rx Error
Quality of Service (QoS)
• 802.1p Quality of Service
• 4 queues per port
• Queue Handling
  – Strict
  – Weighted Round Robin (WRR)
• Bandwidth Control
  – Port-based (Ingress/Egress, min. granularity 8Kb/s)
Security
• Static MAC Address
  – Up to 32 entries
• Broadcast/Multicast/Unknown Unicast Storm Control
Management
• Web-based GUI (Supports IPv4)
• SmartConsole Utility
D-Link Green
• Power Saving by
  – Link Status
  – Cable Length
• Compliant with IEEE 802.3az Energy Efficient EthernetCompliant with RoHS 6
RFC Standard List
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 951 BootP Client
RFC 1542 BootP/DHCP client
RFC 1945 HTTP/1.0
RFC 2647 802.1p

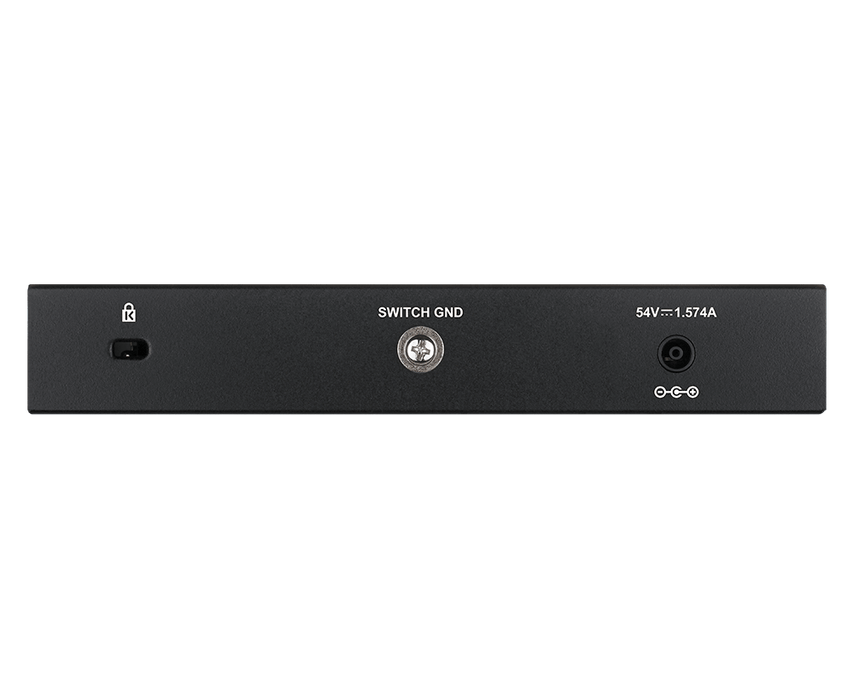

Power Input
100 to 240 V AC
50 to 60 Hz External Power Adapter
MTBF
708,219 hours
Acoustics
0dB
Heat Dissipation
268.87BTU/hr
Weight
0.706kg
Dimensions
190 x 120 x 38mm
Ventilation
Fanless
