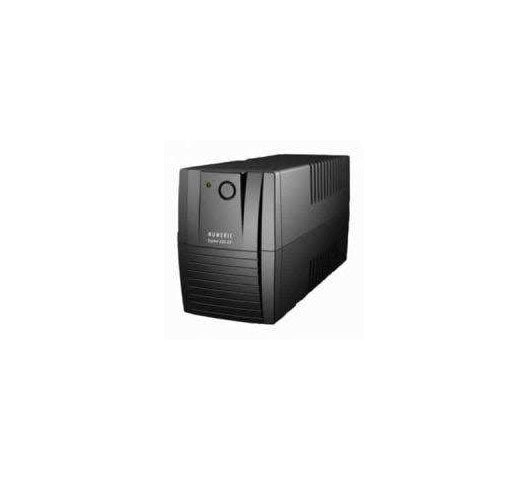

Mercury Elite 650 Pro Offline UPS -UK Plug, 650VA/390W
Mercury Elite 650 Pro Offline UPS -UK Plug, 650VA/390W
Product Highlights
- Build in AVR with wide input range of 140~300VAC
- Auto restart
- Output short circut protection
- Overload protection
- Overcharge protection
- Sleek and compact design with cpu control
Specifications
Input voltage 220VAC
Input frequency 50Hz
Input phase Single phase
Input socket With Fuse
Cold Start (0 to 100% load) Press the ON/OFF switch
Input range (220V) 140V-300V
Rating output (VA). 650VA
Rating output (W). 390W
Rating output (W). Battery mode(simulated sine wave), AC mode (sine wave)
Power factor 0.6
Rating voltage 220V
Output range 220Vac-7%+15% ( in battary mode )
Rear Output Socket 2xUniversal Battery backup
Transfer time TYPICAL 4-8 ms
Communication Interface NIL
Rating frequency 50Hz
Output Frequency Line-mode Synchronize with the Utility
Battery mode 50 Hz±1Hz
Output Frequency Line Mode Synchronize with the utility
Short Circuit Protection Line Mode FUSE & firmware protection
Battery Mode Software protection controlled by firmware
Overload Protection Line Mode 110%+-5% (Go to fault mode after 5 minutes), 120%+-5% (Go to fault mode immediately)
Battery Mode 110%+-5% (Shutdown after 5 minutes) 120%+-5% (Shut down immediately)
Rating frequency 12V/8.2AH x 1
Backup Time Typical 10mins to 18mins (depending on load)
Charge Current About 1A at normal mode
Over Charge Protection >14.5V +/- 0.2V stop charging <13.5V +/- 0.5V Recharge
Weight 5.6kg +/- 0.3Kg
Dimension 390x 145 x 220 (mm)
Master Carton 45.5 x 40 x 23.5 (cm) (4pcs)
