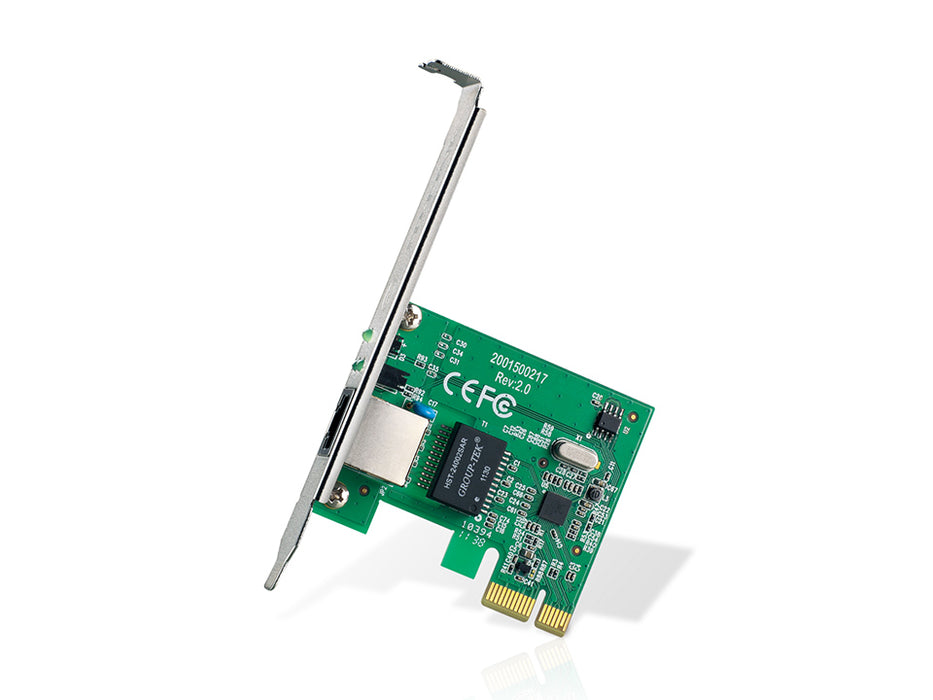

TP-Link Gigabit PCI Express Network Adapter - TG-3468
TP-Link Gigabit PCI Express Network Adapter - TG-3468
Product Highlights
- 32-bit PCIe interface, saving the finite chassis space.
- Wake-on-LAN, convenient to manage over LAN.
- 10/100/1000Mbps PCIe Adapter.
Specifications
Interface: 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED: Status
Wireless Features:
Wireless Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates:
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Dimensions: 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
Certification and Package Contents:
Certification: FCC, RoHS
Package Contents:
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements:
Windows 11/10/8.1/8/7/XP/Vista (32/64bits)
