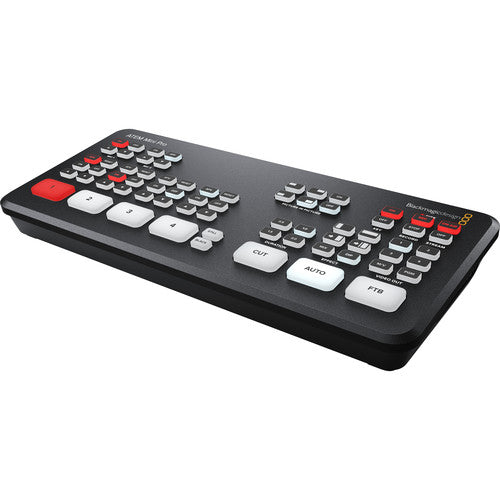

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
Product Highlights
- Same rear panel as ATEM Mini with added buttons and software features
- Stream video up to 1080p HD
- Quick stream, on-air and record buttons
- Hardware encoder so there's no need for additional streaming software
- Control and configure timecode, stream status
- Full support and control features for BMPCC 6K and 4K cameras
- Simultaneous USB recording to computer via USB Type-C
- Integration with MultiDock for live hard drive switching
- Customize advanced settings with XML files
- Software multiview with program previews, graphics, record status, on air status, audio meters
- Program preview input and output buttons
- Tally light control for BMPCC 6K/4K cameras
- Automatic timecode sync for all cameras
Specifications
Available M/E Layers 5 M/E
Effect Types 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys 1 x Chroma, DVE
2 x Luma
Audio Mixing 2-Channel Mixing
Processing
Switching Type Pushbutton
Input
Number of Video Input Sources 4
Video Inputs 4 x HDMI Female
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input HDMI: 2-Channel (per Input)
Output
Video Output Channels 1
Video Outputs 1 x HDMI
Output Video Format HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output HDMI: 2-Channel (per Output)
Multiview Output Yes
Monitor Output 1 x HDMI
Connectivity
Other I/O 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
1 x USB-C Firmware, Control Input/Output
Hardware
OS Compatibility macOS 10.14 or Later
Windows 10
*As of April, 2020: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power I/O 1 x Barrel (12 VDC) Input
Power Consumption 36 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight 19.4 oz / 550 g
Packaging Info
Package Weight 2.26 lb
Box Dimensions (LxWxH) 11.8 x 5.7 x 4.7"
