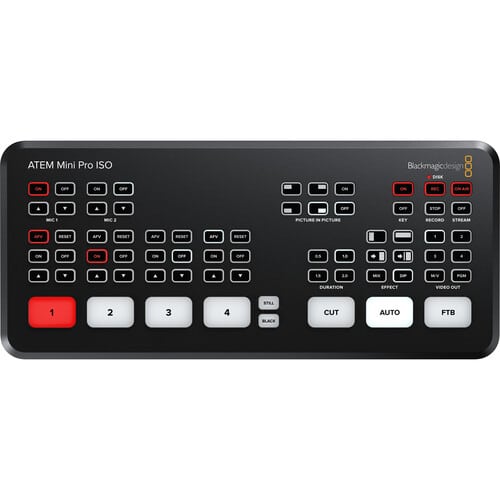

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
Product Highlights
- 4-Channel Live Stream HDMI Switcher
- Program and 4 x Input ISO Recording
- Generates DaVinci Resolve Project
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- 2-Channel Digital Audio Mixer per Source
- HDMI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
Specifications
Switch Type: Pushbutton
Video Inputs: 4 x HDMI Female
Audio Input Terminals: 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Audio Input: Analog
Video Output: 1 x HDMI
Video Output Formats: HDMI / RJ45 (10-Bit 4:2:2 YUV): 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
Control Input/Output: RJ45 LAN, USB Type-C Firmware
Control Input: Control Input/Output, Firmware
Other I/O: Sync, Tally, Timecode
Generators: 1 x Pattern, 2 x Color
Embedded Audio: HDMI: 2-Channel (per Input)
Audio Mixing: 2-Channel Mixing
Available M/E Layers: 5 M/E
Downstream Keys: 1 x Chroma, 2 x Luma, DVE
Effect Types: 1 x DVE, Alpha Key, Chroma Key, Graphic, Luma Key, Transition
Operating Temperature: 41 to 104°F (5 to 40°C)
Storage Temperature: 14 to 140°F / -10 to 60°C
Operating Humidity: 0 to 90%
Power Consumption: 36 W
Power Connectors: 1 x Barrel (12 VDC) Input
Dimensions: 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight: 19.4 oz (550 g)
Box Dimensions (LxWxH): 11.05 x 5.7 x 4.55"
Package Weight: 2.315 lb
Color Processing: 10-Bit 4:2:2 YUV
