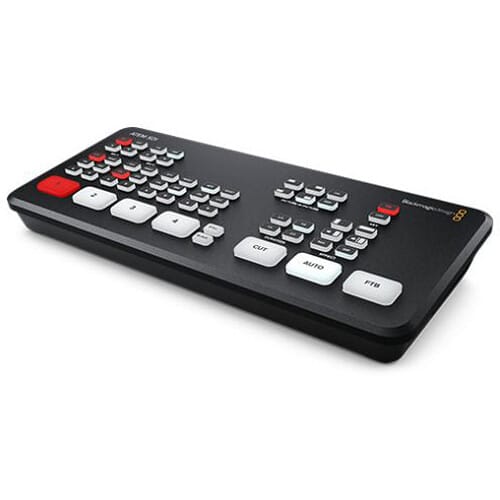

Blackmagic Design ATEM SDI Switcher
Blackmagic Design ATEM SDI Switcher
Product Highlights
- 4-Channel Live Stream 3G-SDI Switcher
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2-Channel Digital Audio Mixer
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
- Color and Pattern Generators
- USB Type-C Streaming/Webcam Output
Specifications
Available M/E Layers 5 M/E
Effect Types DVE, Transition, Chroma Key
Generators 1 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing
Processing
Switching Type IR Remote, Pushbutton, Software
Input
Number of Video Input Sources 4
Video Inputs 4 x BNC (3G-SDI)
Input Video Format SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 56/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input SDI: 2-Channel (per Input)
Output
Video Output Channels 3
Video Outputs 2 x BNC (3G-SDI)
1 x USB-C
Output Video Format SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB-C (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output SDI
Multiview Output None
Connectivity
Other I/O 1 x RJ45 Control Input/Output
HDCP Support None
Hardware
OS Compatibility macOS 11
macOS 12 or Later
Windows 10
Windows 11
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power I/O 1 x Barrel (12 VDC) Input
Power Consumption Device: 36 W
Environmental
Operating Temperature 37 to 72°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 90% (Non-Condensing)
General
Dimensions 9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm
Weight 23.9 oz / 678 g
