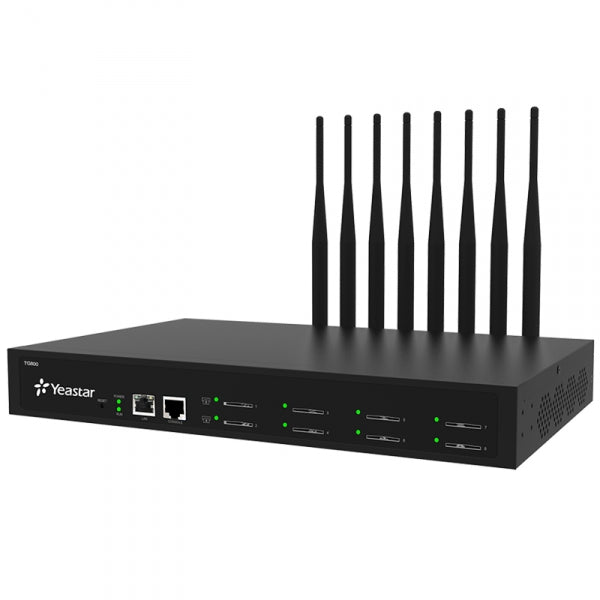

Yeastar Neogate TG800 8 Ports GSM VoIP Gateway
Yeastar Neogate TG800 8 Ports GSM VoIP Gateway
Product Highlights
- Cost-saving backup: TG800 Gateway for backup when landlines are unavailable.
- Mobile and PTSN calls: Enables calls between mobile devices and PSTN networks.
- Easy installation: Simple installation with web-based GUI.
- Integration: Easy integration with existing systems.
- SIP proxy Registrar: Neogate Series includes SIP proxy Registrar for IP phones.
- Call routing: Supports incoming and outgoing call routing.
- SMS functionality: Send and receive SMS messages via web interface.
- Callback function: Convenient callback feature.
- Least Cost Routing (LCR): Optimizes costs with LCR support.
- Voice quality: Ensures high voice quality with EFR super sound.
- Web-based configuration: Easily configure through web-based interface.
Specifications
Number of Ports 8
GSM Frequency 850/900/1800/1900 MHz
WCDMA Frequency 850/1900 MHz, 850/2100 MHz, 900/2100 MHz
4G LTE Band Depending on the module type.
Protocol SIP, IAX2
Antenna Splitter (4 in 1) – Support
Transport UDP, TCP, TLS, SRTP
Voice Codec G.711 (alaw/ulaw), G.726, G.729A, GSM, ADPCM, Speex
DTMF Mode RFC2833, SIP Info, In-band
Echo Cancellation ITU-T G.168 LEC
Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP)
Network Protocol FTP, TFTP, HTTP, SSH
LAN 2 10/100 Mbps Ethernet Interfaces
NAT Traversal Static NAT, STUN
Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN
Operation Range 0°C to 40°C, 32°F to 104°F
Power Supply AC 100-240V
Storage Range -20°C to 65°C, -4°F to 149°F
Dimensions (L × W × H) (mm) 340 x 210 x 44
Humidity 10-90% non-condensing
