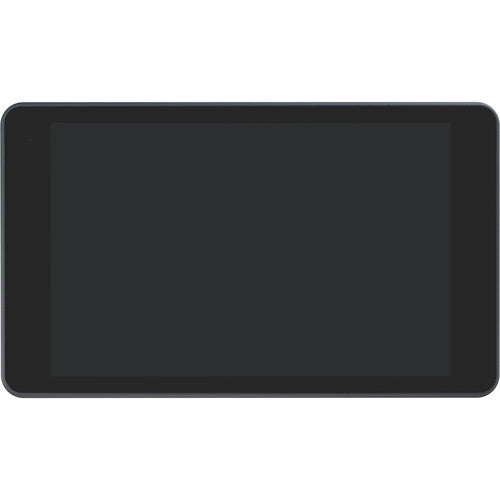

YoloLiv YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorder
YoloLiv YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorder
Product Highlights
- Simultaneous Cross-Platform Streaming
- Encoder, Monitor, Switcher, and Recorder
- 8″ Touchscreen Control LCD Display
- Live Switch from up to 8 Sources
- 3 x HDMI & 1 x USB Inputs
- Supports H.264/MP4 up to 1080p Video
- Stream via Ethernet, Wi-Fi, 4G LTE
- 1 x SD Card Slot for Record, up to 128GB
- HDCP Compliant, Audio & Mic Input
- 400 cd/m² Brightness, Built-In Battery
Specifications
IP Encoding/Decoding
IP Video H.264:
960 x 540 to 1920 x 1080 Encoding
IP Audio AAC-LC: Encoding
Transport Protocols RTMP
Simultaneous Streams 3 Streams
Compatible Services Facebook Live, Twitch, YouTube Live
Wireless
Wi-Fi Yes
Bluetooth None
Cellular
SIM Card Slots 1 x Nano SIM
4G LTE LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 20, 25, 26, 28, 38, 39, 40, 41, 66, 71 Bands
Interfaces
Video I/O 3 x HDMI Input
1 x HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Mono Analog Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
Other I/O 1 x RJ45 (10/100 Ethernet) Input/Output
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Input
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
Embedded Audio HDMI/Wireless: 2-Channel
Internal Recording
Recording Media 1 x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps
Power
Built-In Battery 10,000 mAh
Power Connector 1 x USB-C (5 to 12 VDC at 1.5 A) Input
